GPS Networking - LDCBS1X2 GPS Passive Antenna Splitter 1X2

GPS Networking – LDCBS1X2 GPS Passive Antenna Splitter 1X2

Manufacturer: | Categories: ,

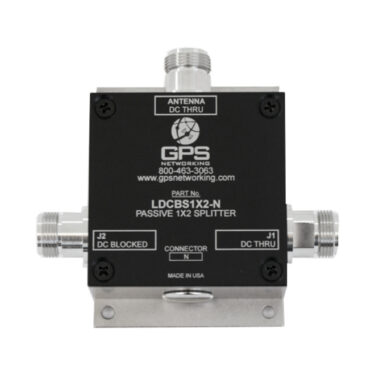

The LDCBS1X2 GPS antenna splitter is a passive one input two output power divider designed specifically for the GPS L1, L2 & GLONASS carrier frequencies.

REQUEST PRICING

Overview

The LDCBS1X2 GPS Splitter is a one input, two output device based on the Wilkinson splitter design. The frequency response covers the GPS L1 & L2 bands with excellent gain flatness.

In the normal configuration, one of the splitter RF outputs (J1) passes DC from the connected GPS receiver through

the splitter to the antenna. The other RF output (J2) is DC loaded with a 200Ω resistor to block the DC voltage and to simulate the antenna current draw to prevent false antenna fault detection.

Features

  • Excellent Gain Flatness

    |L1 L2| < 0.5dB

  • Extremely Flat Group Delay

    Less that 1ns variation

  • Phase Matched Outputs

    Phase (J1 J2) < 1.0o
