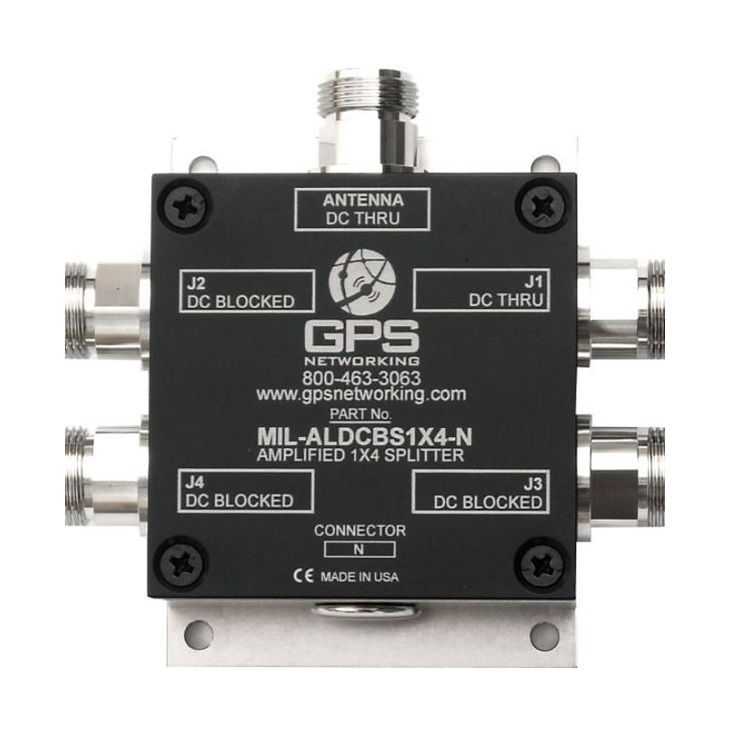

MIL-ALDCBS1x4 Military Grade GPS Splitter

GPS Networking – MIL-ALDCBS1x4 Military Qualified GPS Splitter

Manufacturer: | Categories: ,

The MIL-ALDCBS1X4 GPS splitter from GPS Networking is a one input, four output amplified splitter. The frequency response covers the entire L-band (all GNSS Frequencies) with excellent gain flatness.

REQUEST PRICING

Overview

The MIL-ALDCBS1X4 GPS Splitter (GNSS Splitter) is a one input, four output amplified splitter based on the Wilkinson splitter design. The frequency response covers the entire L-band (all GNSS Frequencies) with excellent gain flatness. All Mil Spec splitters passed rigorous MIL-STD 810F testing detailed in the separate Qual Test Summary Certification. The MIL-ALDCBS1X4 is standard hermetically sealed, EMI Shielded, Weatherproofed and configured with MIL-STD-704 or MIL-STD 1275B compliant power options. Each DC blocked output is loaded with a 200Ω resistor to simulate the antenna current draw to prevent false antenna alarm faults.

Features

  • Military Qualified 1×4 Splitter
    Mil STD 810F, MIL STD 704, MIL STD 1275B
  • Excellent Gain Flatness
    |J1 – J4| < 1.0dB
  • Extremely Flat Group Delay
    Less than 1ns variation
  • Amplifier Gain 6dB typical
  • Passess all GNSS Frequencies (Entire L-band)
  • Phase Matched Outputs
    Phase(J1-J4) < 1.0°

Ordering

The MIL-ALDCBS1X4 military qualified GPS splitter from GPS Networking is available through Canal Geomatics. For more information, please contact us using the Request Pricing form.
