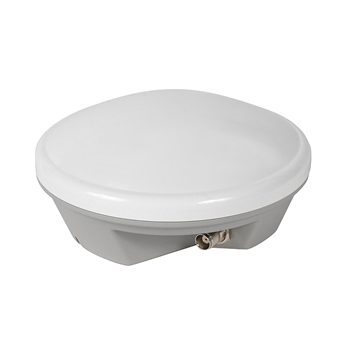

AG25 GNSS Antenna

AG25 GNSS Rover Antenna

The AG25 GNSS antenna from Trimble is compact and housed in a rugged unit, making it ideal for monitoring and seismic applications that require reliable and high accuracy.

REQUEST PRICING

Overview

The AG25 GNSS antenna from Trimble is a high-performance antenna that can track multiple correction signals, including GPS (L1/L2/L5), GLONASS (G1/G2/G5), SBAS (WAAS/EGNOS/MSAS) and L-Band. It is capable of tracking signals from lower elevation satellites, which is extremely useful in tough environments.

Features

  • GNSS support including GPS, GLONASS, SBAS and L-Band
  • Enhanced ability to track lower elevation satellite signals
  • Built-in magnets for quick and simple installation
  • Can be installed permanently using the 5/8 inch thread
  • Improved multipath mitigation
  • TNC Connector

Technical Specifications

Part number: 99038-00-INT
Design type: Land/Vehicle
Size (d) x Thickness (cm): 15.2ø x 7.4 cm
Weight (kg): 0.59 kg
Mounting style: 5/8 inch Tread/Mast+ Magnets
GPS: L1, L2, L5
Glonass: L1, L2, L3
Galileo: E1, E5a, E5b, E6
BeiDou: B1, B2, B3
QZSS: L1, L2, L5, LEX
SBAS:
L-Band:
Phase Center: <4mm Hor
<14mm Ver
Gain: 42 dB
DC-Feed 3.4 V – 12V
130 mA

Ordering

The AG25 GNSS antenna from Trimble is available through Canal Geomatics. If you want more information regarding this product, feel free to get in touch with us by completing the Request Pricing form.
