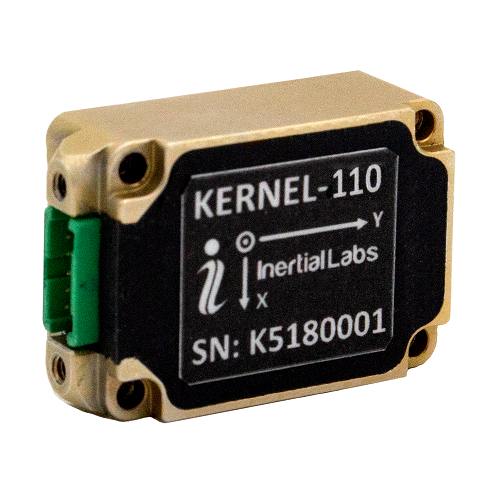

Fully calibrated, temperature compensated and mathematically aligned to an orthogonal coordinate system, the DTS-Kernel-110 digital tilt sensor from Inertial Labs contains up to 2 deg/hr bias in-run stability gyroscopes and 10 μg bias in-run stability accelerometers with extremely low noise and high repeatability.
The DTS-Kernel-110, and the rest of the Kernel series of digital tile sensors, are a fully integrated inertial solutions which combine the newest MEMS sensors technology. This seamless integration allows Inertial Labs to provide an inertial system with top-of-the line performance while maintaining a high value price point. With its compact design and low power consumption, the Kernel digital tilt sensors easily integrate in a wide range of higher order systems while consuming very little space and power.
With continuous Built-in Test (BIT), configurable communications protocols, electromagnetic interference (EMI) protection, and flexible input power requirements, the Kernel-110 was built to be used in a wide variety of environments and integrated system applications. Units have been thoroughly tested to perform in large variations in temperature, high vibration, and shock. Designed to be used in air, marine, and land environments, the Kernel series can be integrated into Motion Reference Units (MRU), Attitude and Heading Reference Systems (AHRS), and GPS-Aided Inertial Navigation Systems (INS). As a result, the Kernel digital tilt sensors are ideal for a wide variety of applications such as autonomous vehicles, antenna and line of sight stabilizations systems, as well as buoy or boat motion monitoring.
“The new Kernel IMUs represent the innovative approach at Inertial Labs,” said Jamie Marraccini, President & CEO of Inertial Labs, “[the] high performance and the flexibility to integrate into different systems and applications is what we have striven to provide to our clients with the new Kernel IMU release.”
- Autonomous vehicles
- Antenna and line of sight stabilization systems
- Passengers trains acceleration / deceleration and jerking systems
- Motion Reference Units (MRU) and Motion Control Sensors (MCS)
- Gimbals, EOC/IR, platforms orientation and stabilization
- GPS-Aided Inertial Navigation Systems (INS)
- Attitude and Heading Reference Systems (AHRS)
- UAV & AUV/ROV navigation and control
- ITAR free
- Full temperature calibration of all sensing elements
- Advanced, extendable, embedded Kalman Filter
- Configurable communications protocols
- Flexible input power requirements
|Bias In-Run Stability:||2 °/hr (RMS)|
|Noise:||0.3 °/√hr (AWR)|
|Bias In-Run Stability:||0.01 mg (RMS, 8g)|
|SF Accuracy:||500 ppm (over temp. range)|
|Pitch & Roll|
|Accuracy:||0.05 ° (Static, RMS)|
|Size:||28.38 mm x 19.5 mm x 10.5 mm|
|Supply Voltage:||4 – 15 VDC|
|Power Consumption:||0.4 – 0.6 W|
|Mechanical Shock:||MIL-STD-810, 400 g, 0.1 ms|
|Vibration:||MIL-STD-810G, 8, 10 g – 2000 Hz|
|Operating Temperature:||-40 °C to +85 °C|
|Storage Temperature:||-50 °C to +90 °C|
Inertial Labs products are covered under their 15-month standard warranty. Inertial Labs will repair or replace products with design or manufacturing defects, for a period of 15 months from the date of purchase.
Why Buy from Us?
In business since 2004, Canal Geomatics is an authorized dealer for Inertial Labs and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.
The DTS-Kernel-110 digital tilt sensor from Inertial Labs is available through Canal Geomatics. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
