NovAtel GNSS 303L-A GNSS Antenna

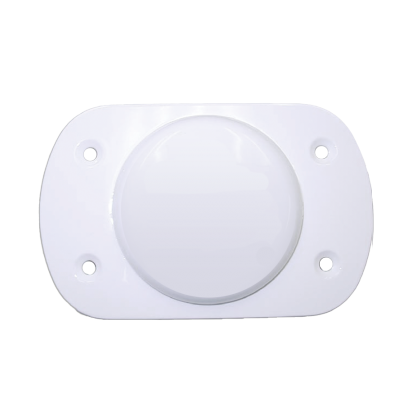

NovAtel GNSS-303L-A Compact Triple-Frequency GNSS Antenna

Manufacturer: | Category:

The GNSS-303L from NovAtel is an active L1/L2/L5 GNSS antenna able to receive GPS, GLONASS, Galileo, BeiDou, NavIC and L-Band signals. It was designed for airborne use, but is suitable for any mobile application.

REQUEST PRICING

Overview

The GNSS-303L-A compact triple-frequency GNSS antenna from NovAtel is designed to receive GPS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b/E6, BeiDou B1/B2/B3 and NavIC. It is also capable of receiving correction services transmitted in the L-Band, such as TerraStar.

The GPS-303L-A antenna is designed to withstand the elements including rain, snow and dust. Compact in size, this antenna is also light and portable for use in airborne applications and other mobile environments.

The GPS-302L-A antenna can be attached to a surface by means of an ARINC-743 bolt pattern.

Features

  • GPS, GLONASS, Galieo and BeiDou signal reception
  • L-Band tracking
  • Compact unit provides excellent performance
  • Light and portable for mobile environments
  • Equipped with screw mount
  • Robust for use in critical weather conditions

Technical Specifications

GPS:L1/L2/L5
GLONASS:L1/L2
Galileo:E1/E5a/E5b/E6
BeiDou:B1/B2/B3
L-Band Tracking:Yes
LNA Gain:26 dB to 30 dB (typical)
Size:120 mm (L) x 80 mm (W) x 30 mm (H)
Weight:280 g
Antenna Mounting:Screw
Antenna Form Factor:ARINC-743 Bolt Pattern
Mechanical Configuration:Spherical Radius Molded Radome
Power:3.8 to 6 VDC, 60 mA (typical)
Connector:TNC Male
Compliance:CE, FCC

Ordering

The GNSS-303L-A antenna from NovAtel is available through Canal Geomatics. If you would like to learn more about this antenna, please use the Request Pricing form to get in touch with us.
