Overview

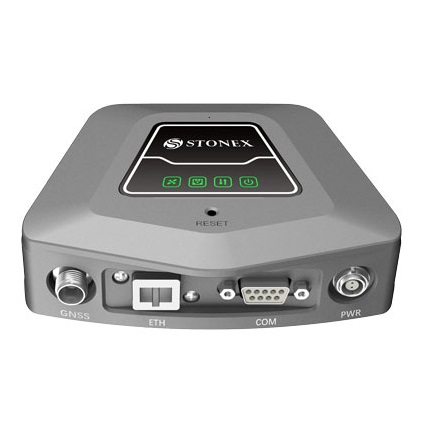

The Stonex SC400A is a multipurpose GNSS receiver that can be used for static applications such as CORS, monitoring or as a base station. It can also be paired to kinematic surveys and positioning as a rover in RTK applications.
This receiver is equipped with an interference mitigation technology that allows you to measure the RF spectrum and applies filters to ensure the quality of GNSS measurements, even in environments with interference.
Features
- Tracks GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS and Atlas L-Band
- Proven Stonex GNSS technology
- Wi-Fi, Bluetooth and Web UI
- Rugged enclosure for operation in harsh environments
Technical Specifications
| Receiver | |
| Channels: | 800 |
| GPS: | L1C/A, L1C, L1P, L2C, L2P, L5 |
| GLONASS: | L1, L2, L3 |
| Galileo: | E1, ALTBOC, E5a, E5b, E6 |
| BeiDou: | B1, B2, B3, ACEBOC |
| QZSS: | L1 C/A, L1C, L2C, L5, LEX |
| IRNSS: | L5 |
| SBAS: | Yes |
| L-Band: | Atlas H10/H30/Basic (optional) |
| Position Rate: | 10 Hz, optional 20 Hz |
| Signal Reacquisition: | < 1 s |
| Cold Start: | Typically < 60 s |
| Hot Start: | Typically < 10 s |
| Internal Memory: | 32 GB, multi storage sessions |
| Positioning | |
| High Precision Static Surveying | |
| Horizontal: | 3.0 mm + 0.1 ppm RMS |
| Vertical: | 3.5 mm + 0.4 ppm RMS |
| Code Differential Positioning | |
| Horizontal: | 0.25 m RMS |
| Vertical: | 0.45 m RMS |
| SBAS Positioning | |
| Horizontal: | 0.50 m RMS |
| Vertical: | 0.85 m RMS |
| Real Time Kinetic (<30 km) – Network Surveying | |
| Fixed RTK Horizontal: | 8.0 mm + 1 ppm RMS |
| Fixed RTK Vertical: | 15 mm + 1 ppm RMS |
| System Configuration | |
| Operating System: | Linux |
| Power Supply | |
| Voltage: | 8 to 36 V DC external power input |
| Port: | Lemo 2 pin |
| Physical | |
| Dimensions: | 131 mm x 97 mm x 37 mm |
| Weight: | 435 g |
| Operating Temperature: | -30°C to 65°C (-22°F to 149°F) |
| Storage Temperature: | -45°C to 80°C (-49°F to 176°F) |
| Waterproof/Dustproof: | IP67 |
| Shock Resistance: | Designed to endure a 2.0 m pole drop on concrete floor with no damage |
Why Buy from Us?
In business since 2004, Canal Geomatics is an authorized dealer for Stonex and has established itself as an industry-leading distributor of high-precision positioning products in North America. Our mission is to find the best solution for each unique application and extend premium support to ensure the long-term success of our customers. We offer both volume and reseller discounts for the majority of our product lines.
Ordering
The SC400A GNSS CORS receiver from Stonex is available through Canal Geomatics. If you would like more information regarding this product, feel free to get in touch with us by completing the Request Pricing form.
